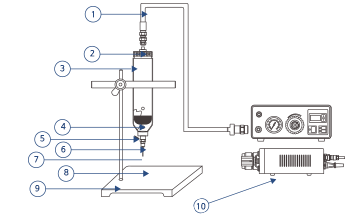

1K Dispensing [ SYSTEM2 ]
01 Connetor Tube
02 Auto Joint
03 Holder Cap
04 Holder
05 Plunger
06 Cartridge
07 Needle Adapter
08 Needle
09 Stand
10 Controller

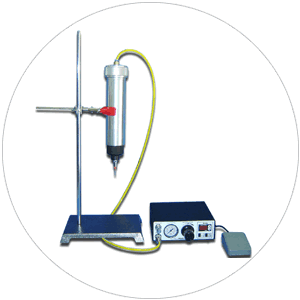

◎ MODEL: STSTEM-2
▶ is basically same type of System-1, One thing particular difference is using the cartridge
which filled liquid inside of cartridge.
It using storage inside of cartridge which more bigger volume of material.

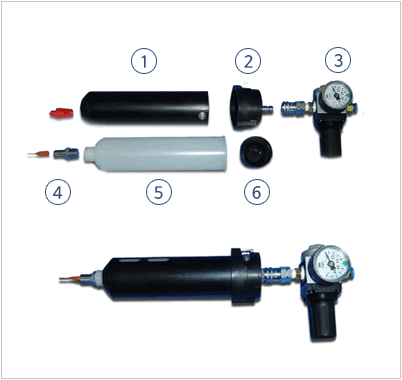

01 Cartridge Holder
02 Holder Cap
03 Regulator Set
04 Needle Adapter
05 Cartridge
06 Top Cap
Connector Tube
| AWG |
In Dia×Out Dia |
| 30 |
0.3Ø × 0.6Ø |
| 26 |
0.5Ø × 1.0Ø |
| 24 |
0.6Ø × 1.1Ø |
| 22 |
0.7Ø × 1.2Ø |
| 20 |
0.9Ø × 1.5Ø |
| 19 |
1.0Ø × 1.6Ø |
| 18 |
1.1Ø × 1.7Ø |
| 17 |
1.2Ø × 1.8Ø |
| 16 |
1.4Ø × 2.0Ø |
| 15 |
1.6Ø × 2.2Ø |
| 14 |
1.7Ø × 2.3Ø |
| 13 |
1.9Ø × 2.5Ø |
| 12 |
2.2Ø × 2.8Ø |
| 11 |
2.4Ø × 3.0Ø |
| 10 |
2.7Ø × 3.3Ø |
| 9 |
3.0Ø × 3.6Ø |
| 8 |
3.3Ø × 3.9Ø |
| 7 |
3.8Ø × 4.4Ø |
| 6 |
4.2Ø × 5.2Ø |
| 5 |
4.7Ø × 5.7Ø |
Needle Adapter
| Model |
Screw |
| GVAL-18 |
PT1/8′+luer Lock |
| GVAL-14 |
PT1/4′+luer Lock |
| GVA-14 |
PT ¼′ |
| GVA-06 |
M6 |
| GVA-516 |
PT5/16 |
| GVA-18 |
Py1/8 |
