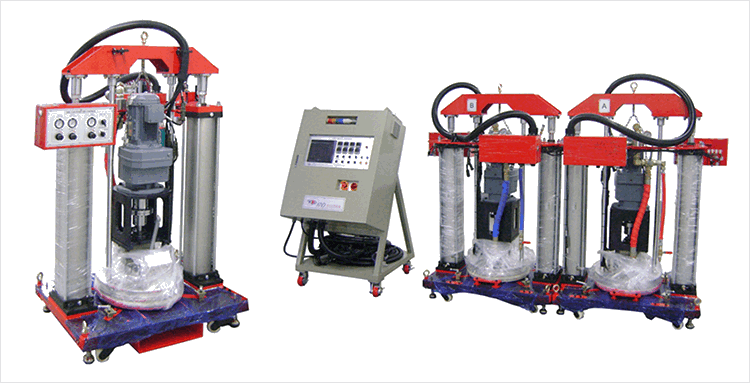

LNGC - 200L Mastic Dispenser

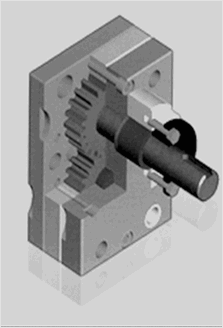

＊ Precision Gear Pump brought not pulsatory motion.
＊Prevention of motor and
gear pump damage from overpressure
＊Easy mixing volume adjust by Touch Screen.
＊Alarm from Drum Change time
＊Real time display of discharging pressure.
＊Easy Changeable Drum.
＊Easy view working condition and
various alarm function.

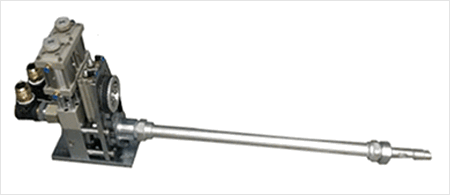

Turning Valve
＊ Easy assembly and disassemble.
＊Choosing the mixer element by epoxy Viscosity.
＊Change the dispensing shape by
adjusting the rotating cylinder angle.
＊Nozzle angle can be adjustable on Dozing
( Applied Shape change)
＊High Longevity with using special material pin.
＊Double Cylinder type of High Pressure Valve

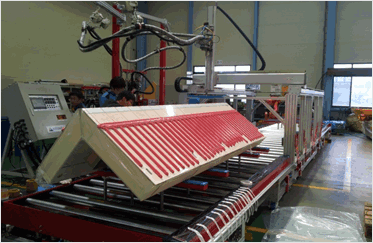

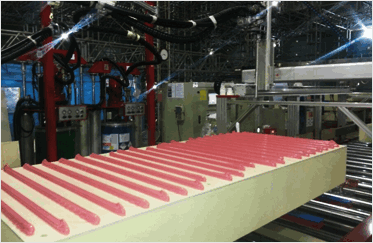

LNGC - 200L Mastic Dispenser [ 적용 예 ]
Content
size : 3000(W) x 800(D) x 1773(H)
weight : A material : 600kg / Hardener : 600kg / Control : 180kg
Viscosity : 10,000 ~ 1,000,000cps
Exhaust Valve : KV-1000ST
Exhaust Volume : 4L(min) ~ 8L(max)
Gear Pump : K-Bass(200cc/rev)
Drum Volume : 200L
Mixing Ratio : 100:50 ~ 100:100
Pressure(Air) : 6Bar(min) x 9Bar(max)
Voltage : 220v / 380V~ 3￠
Control : P. L. C제어_Inverter 중앙제어
Type Mixing Type : S- Line Mixer (3020MH)
Handling Part
: 1K Auto Dispensing, 2K Mixing Exhasut, Robot System, Liquid Charging Vacuum, Vacuum Insert, Automation Line
Apply Field : Electric, Electronic, Chemical, Pharmacy, Semiconductor, Car, Ship-marine, Craft
