Aluminum Parts Manufacturing Facilities

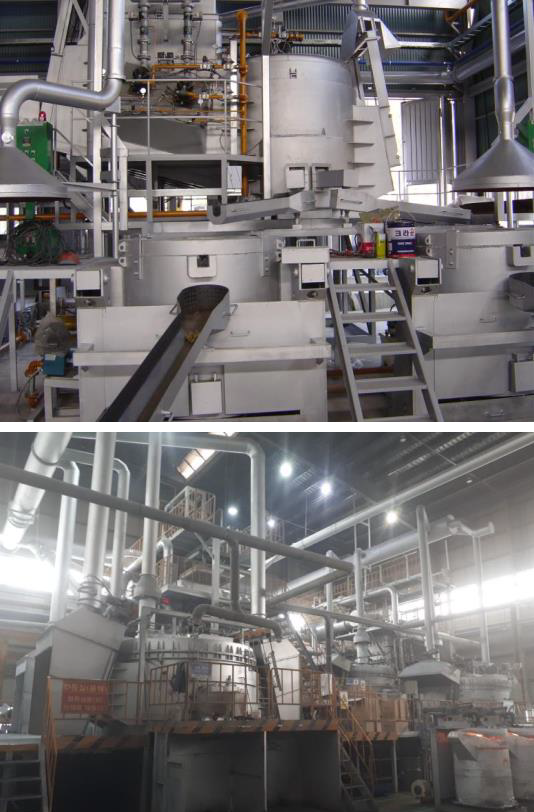

Products Rapid Melting Furnace
-
Advanced Solution for Al Melting
· Efficient energy transfer for optimized melting
· Delivering high-quality metal into your mold
· Improved energy efficiency
| Description |
Standard |
| TYPE |
In tower preheating quick solution |
| Solution |
metal Aluminum alloy |
| Temperature NOR. 720~760℃ |
NOR. 720~760℃
MAX. 800℃ |
| Energy |
LNG Gas (10,500KCal/N㎡) |
| Capacity |
Melting : 1500Kg/hr
Holding : 3000Kg/ch |
| Capacity |
Melting : 1500Kg/hr
Holding : 3000Kg/ch |
| F’CE Temperature |
Melting Zone : 60℃
Holding Zone : 50℃ |
| AL Oxidation loss |
2% |
| AL Dross loss |
3% |
| Waste gas discharge temperature |
500℃ |

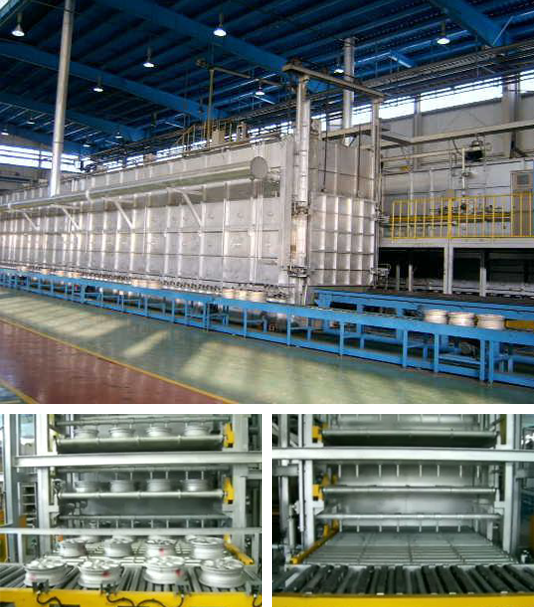

Products Continuously Heat Treatment System
-
Optimized Heat Treatment Solutions
· Uniform furnace temperature distribution
· Exceptional durability
· Breakthrough energy-saving performance
| Description |
Standard |
| TYPE |
Non basket / Hearth-Roller Type |
| Working Products |
Aluminum products |
| F’ce Work Piece |
Customized |
| Energy |
LNG |
| Capacity |
Customized |

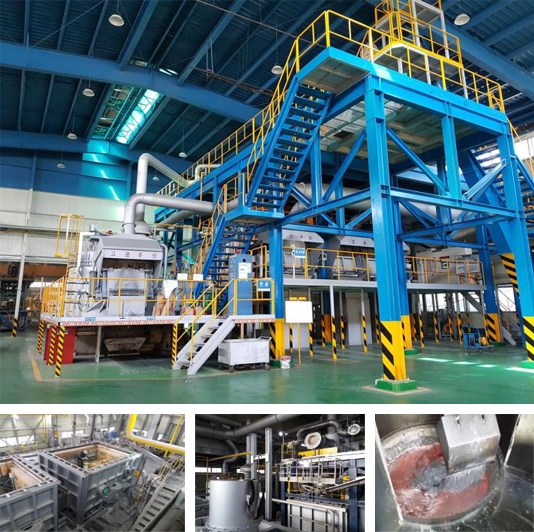

Products Chip Melting Furnace
The new model is a furnace that features a waste heat recovery system to improve efficiency.

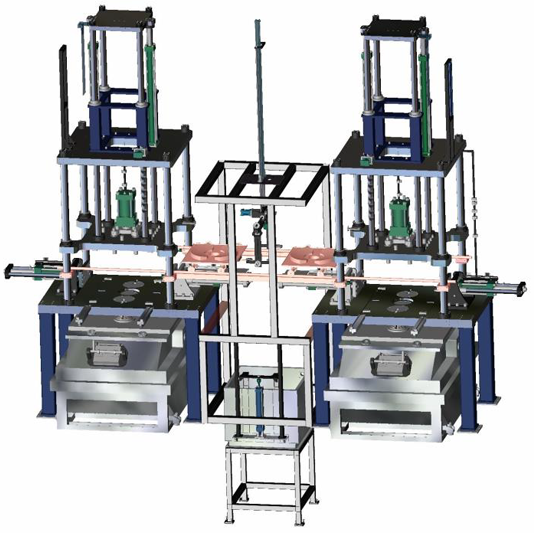

Products Low Pressure Casting Machine
-
Characteristics
· Automated operation
· Enhanced ease of use
· Quick and convenient mold replacement
| Description |
Standard |
REMARK |
| Main Body |
2500 × 3000 × 5530(6730) |
- |
| Fixed Die Plate |
2280 × 1550 × 120 |
- |
| Die Space |
600 ~ 1800 (Max) |
- |
Consumption elec.
Power (Max) |
65 kW |
- |
| HYD. Motor |
18.5 kW × 3Φ × 380V × 50Hz |
- |
| HYD. Pump |
120 Kgf/cm² (150 Kgf/cm²) |
- |
| Plate & Holding Face Distance |
112 mm |
Distance |
| Holding Furnace Capacity |
1,200 kg |
- |
Combination Equipment with Casting Machine
Water Cooling Tank
Automatic Filter Placer
Casting Product Catcher
