LNGC – TBP Slope Carriage Working Table
Feature

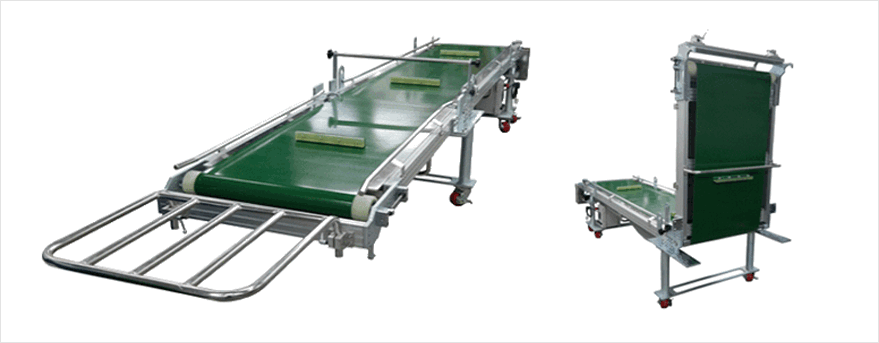

TBP Slope Carriage Working Table
1)Power Source : AC 220V(1Ph)
2) CONVEYOR TYPE
ROLLER CARRIER PVC BELT
3) SIZE
- Working : 900(W) x 833H x 4130L
- Moving : 900(W) x 2170H x 2833L


4) Weight : 250kg
5) MOTOR : 180W x 1/36 (SPEED CONTROL TYPE)
6) BELT :5 90 x 2T X 7800
7) Moving Speec : V = 1800 x 1/36 x 15 / 15 x 100 x 3.14 / 1000 = m/min
8) Caster : 4 INCH / 6EA
